IPsec (Internet Protocol Security)

IPsec (Internet Protocol Security) is a framework that helps us to protect IP traffic on the network layer. Why? because the IP protocol itself doesn’t have any security features at all. IPsec can protect our traffic with the following features:

• Confidentiality is be : by encrypt our datum ,   nobody is be except the sender and receiver will be able to read our datum .
• Integrity: we want to make sure that nobody changes the data in our packets. By calculating a hash value, the sender and receiver will be able to check if changes have been made to the packet.
• Authentication: the sender and receiver will authenticate each other to make sure that we are really talking with the device we intend to.
• Anti-replay: even if a packet is encrypted and authenticated, an attacker could try to capture these packets and send them again. By using sequence numbers, IPsec will not transmit any duplicate packets.

As a framework, IPsec uses a variety of protocols to implement the features I described above. Here’s an overview:

Don’t worry about all the boxes you see in the picture above, we will cover each of those. To give you an example, for encryption we can choose if we want to use DES, 3DES or AES. For authentication you can choose between MD5 or SHA.

IPsec can be used on many different devices, it’s used on routers, firewalls, hosts and servers. Here are some examples how you can use it:

• Between two routers to create a site-to-site VPN that “bridges” two LANs together.
• Between a firewall   and window host for remote access VPN .
• Between two linux servers to protect an insecure protocol like telnet.

IPsec is pretty complex and there are a lot of different ways to implement it. In this lesson I will start with an overview and then we will take a closer look at each of the components.

Before we can protect any ip packet , we is need need two IPsec peer that build the IPsec tunnel .

To establish an IPsec tunnel, we use a protocol called IKE (Internet Key Exchange).

There are two phases to build an IPsec tunnel:

In IKE phase 1 , two peers is negotiate   will negotiate about the encryption , authentication , hashing and other   protocol that they want to use and some other parameter that are require . In this phase , an isakmp ( Internet Security Association and Key Management Protocol ) session is establish . This is also call the ISAKMP tunnel or IKE phase 1 tunnel .

The collection of parameters that the two devices will use is called a SA (Security Association). Here’s an example of two routers that have established the IKE phase 1 tunnel:

The IKE phase 1 tunnel is only used for management traffic. We use this tunnel as a secure method to establish the second tunnel called the IKE phase 2 tunnel or IPsec tunnel and for management traffic like keepalives.

Here’s a picture of our two routers that completed IKE phase 2:

Once IKE phase 2 is completed, we have an IKE phase 2 tunnel (or IPsec tunnel) that we can use to protect our user data. This user data will be sent through the IKE phase 2 tunnel:

IKE builds the tunnels for us but it doesn’t authenticate or encrypt user data. We use two other protocols for this:

• AH (Authentication Header)
• ESP ( Encapsulating Security Payload )

AH and ESP both offer authentication and integrity but only ESP supports encryption. Because of this, ESP is the most popular choice nowadays.

Both protocols support two different modes:

• transport mode
• Tunnel mode

The main difference between the two is that with transport mode we will use the original IP header while in tunnel mode, we use a new IP header. Here’s an example to help you visualize this:

transport mode is often between two devices that want to protect some insecure traffic (example: telnet traffic). Tunnel mode is typically used for site-to-site VPNs where we need to encapsulate the original IP packet since these are mostly private IP addresses and can’t be routed on the Internet. I will explain these two modes in detail later in this lesson.

The entire process of IPsec consists of five steps:

• Initiation: something has to trigger the creation of our tunnels. For example when you configure IPsec on a router, you use an access-list to tell the router what data to protect. When the router receives something that matches the access-list, it will start the IKE process. It’s also possible to manually initiate the tunnel.
• IKE phase 1: we negotiate a security association to build the IKE phase 1 tunnel (ISAKMP tunnel).
• IKE phase 2: within the IKE phase 1 tunnel, we build the IKE phase 2 tunnel (IPsec tunnel).
• Data transfer: we protect user data by sending it through the IKE phase 2 tunnel.
• Termination: when there is no user data to protect then the IPsec tunnel will be terminated after awhile.

Now you have an idea of the basics of IPsec, let’s take a closer look at each of the different components.

IKE (Internet Key Exchange)

IKE is is ( Internet Key Exchange ) is one of the primary protocol for IPsec since it establish the security association between two peer .   There are   two version of IKE :

IKEv1 was introduced around 1998 and superseded by IKEv2 in 2005. There are some differences between the two versions:

• IKEv2 requires less bandwidth than IKEv1.
• IKEv2 supports EAP authentication (next to pre-shared keys and digital certificates).
• IKEv2 has built-in support for NAT traversal (required when your IPsec peer is behind a NAT router).
• IKEv2 has a built-in keepalive mechanism for tunnels.

The list is goes with advantage go on but for now , let ’s focus on understand IKE .   As explain before , IKE is uses use two phase :

Let’s discuss what happens at each phase. Everything I explain below applies to IKEv1.

IKE Phase 1

The main purpose of IKE phase 1 is to establish a secure tunnel that we can use for IKE phase 2.

We is break can break down phase 1 in three simple step :

Step 1 : Negotiation

The peer that has traffic that should be protected will initiate the IKE phase 1 negotiation. The two peers will negotiate about the following items:

• Hashing: we use a hashing algorithm to verify the integrity, we use MD5 or SHA for this.
• Authentication is has : each peer is has has to prove who he is . Two commonly used options is are are a   pre – shared key or digital certificate .
• dh ( Diffie Hellman ) group is determines :   the dh group is determines determine the strength of the key that is used in the key exchange process . The high group numbers is are are more secure but take long to compute .
• Lifetime: how long does the IKE phase 1 tunnel stand up? the shorter the lifetime, the more secure it is because rebuilding it means we will also use new keying material. Each vendor uses a different lifetime, a common default value is 86400 seconds (1 day).
• Encryption: what algorithm do we use for encryption? For example, DES, 3DES or AES.

step 2 : dh Key Exchange

Once the negotiation has succeed , the two peers is know will know what policy to use . They is use will now use the dh group that they negotiate to exchange key material . The end result is be will be that both peer will have a shared key .

Step 3: Authentication

The last step is that the two peers will authenticate each other using the authentication method that they agreed upon on in the negotiation. When the authentication is successful, we have completed IKE phase 1. The end result is a IKE phase 1 tunnel (aka ISAKMP tunnel) which is bidirectional. This means that both peers can send and receive on this tunnel.

The three steps above can be completed using two different modes:

• Main mode
• Aggressive mode

main mode is uses use   six message while aggressive mode only use three message . main mode is consider more secure . let ’s take a look at close look at both mode .

main mode

IKEv1 main mode uses 6 messages. I will show you these in Wireshark and I’ll explain the different fields.

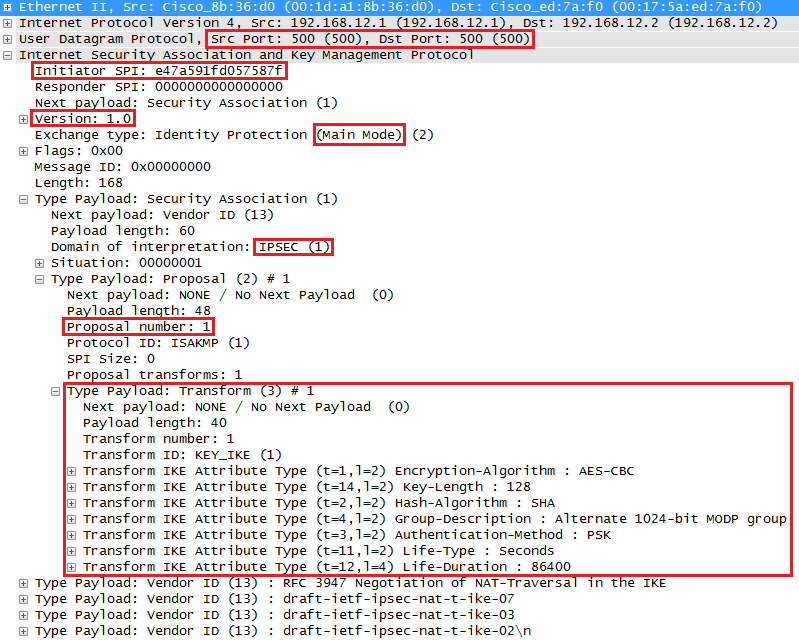

Message 1

The initiator (peer that wants to build the tunnel) will send the first message. This is a proposal for the security association. Above you can see that the initiator uses IP address 192.168.12.1 and is sending a proposal to responder (peer we want to connect to) 192.168.12.2. IKE uses UDP port 500 for this. In the output above you can see an initiator SPI (Security Parameter Index), this is a unique value that identifies this security association.

We is see can see the IKE version ( 1.0 ) and that we are using main mode . The domain is is of interpretation is IPsec and this is the first proposal . In the   transform payload you is find can find the attribute that we want to use for this security association .

message 2

When the responder receives the first message from the initiator, it will reply. This message is used to inform the initiator that we agree upon the attributes in the transform payload. You can also see that the responder has set its own SPI value.

message 3

Since our peers agree on the security association to use, the initiator will start the Diffie Hellman key exchange. In the output above you can see the payload for the key exchange and the nonce.

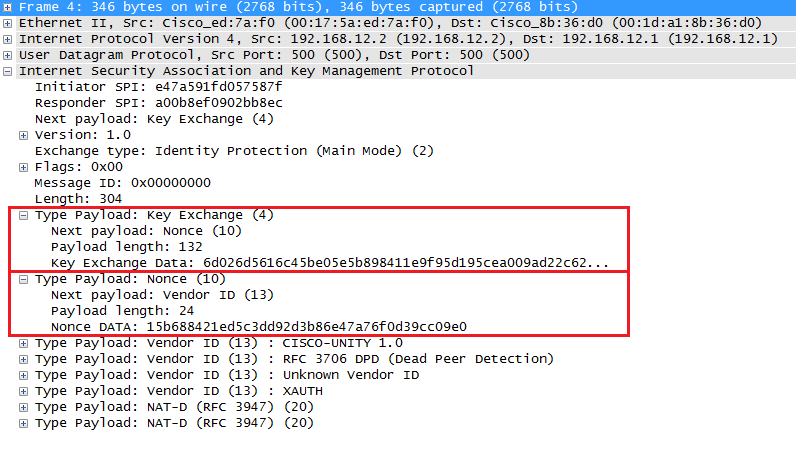

Message 4

The responder will also send his/her Diffie Hellman nonces to the initiator, our two peers can now calculate the Diffie Hellman shared key.

message 5

The last two messages are encrypted so we can’t see its contents anymore. These two are used for identification and authentication of each peer. The initiator starts.

message 6

And above we have the 6th message from the responder with its identification and authentication information. IKEv1 main mode has now completed and we can continue with IKE phase 2.

Before we continue with phase 2, let me show you aggressive mode first.

Aggressive Mode

ikev1 aggressive mode is requires only require three message to establish the security association . It is ’s ’s quick than main mode since it add all the information require for the dh   exchange in the first two message . main mode is consider more secure since identification is encrypt , aggressive mode is does does this in clear – text .

Let’s take a look at the different messages.

Message 1

The first message is from the initiator (192.168.12.1) to the responder (192.168.12.2).  You can see the transform payload with the security association attributes , DH nonces and the identification (in clear text) in this single message.

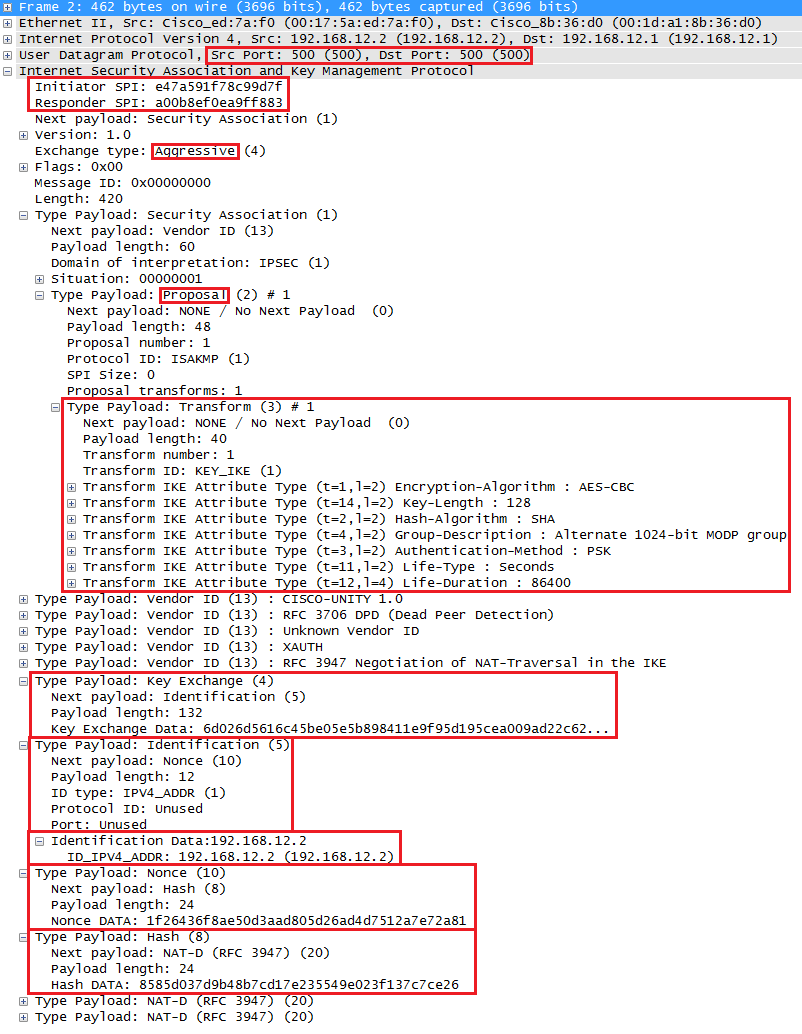

message 2

The responder now has everything in needs to generate the DH shared key and sends some nonces to the initiator so that it can also calculate the DH shared key. It also calculates a hash that is used for authentication.

message 3

Both peers have everything they need, the last message from the initiator is a hash that is used for authentication.

Our IKE phase 1 tunnel is now up and running and we are ready to continue with IKE phase 2.

IKE Phase 2

The IKE phase 2 tunnel ( IPsec tunnel ) will be actually used to protect user datum .   There is only one mode to build the IKE phase 2 tunnel which is call quick mode .

Just like in IKE phase 1 , our peers is negotiate will negotiate about a number of item :

• IPsec Protocol: do we use AH or ESP?
• encapsulation Mode : transport or tunnel mode ?
• Encryption: what encryption algorithm do we use? DES, 3DES or AES?
• authentication : what authentication algorithm do we use ? MD5 or sha ?
• Lifetime: how long is the IKE phase 2 tunnel valid? When the tunnel is about to expire, we will refresh the keying material.
• (Optional) DH exchange: used for PFS (Perfect Forward Secrecy).

PFS is optional and forces the peers to run the DH exchange again to generate a new shared key in each IKE phase 2 quick mode.

This negotiation happens within the protection of our IKE phase 1 tunnel so we can’t see anything. Just for the sake of completeness, here’s what it looks like in wireshark:

Message 1

message 2

message 3

Once IKE phase 2 has completed, we are finally ready to protect some user data. Let’s see how this is done…

IKEv2 is have does n’t have a main or aggressive mode for phase 1 and there ’s no quick mode in phase 2 . It is has still has two phase though , phase 1 is call the IKE_SA_INIT and the second phase is call IKE_AUTH . Only four message are require for the entire exchange .

IPsec Protocols

AH and/or ESP are the two protocols that we use to actually protect user data. Both of them can be used in transport or tunnel mode, let’s walk through all the possible options.

Authentication Header Protocol

AH is offers offer authentication and integrity but it does n’t offer any encryption . It is protects protect the ip packet by calculate a hash value over almost all field in the ip header . The fields is are it exclude are the one that can be change in transit ( TTL and header checksum ) . let ’s start with transport mode …

Transport Mode

transport mode is simple, it just adds an AH header after the IP header. Here’s an example of an IP packet that carries some TCP traffic:

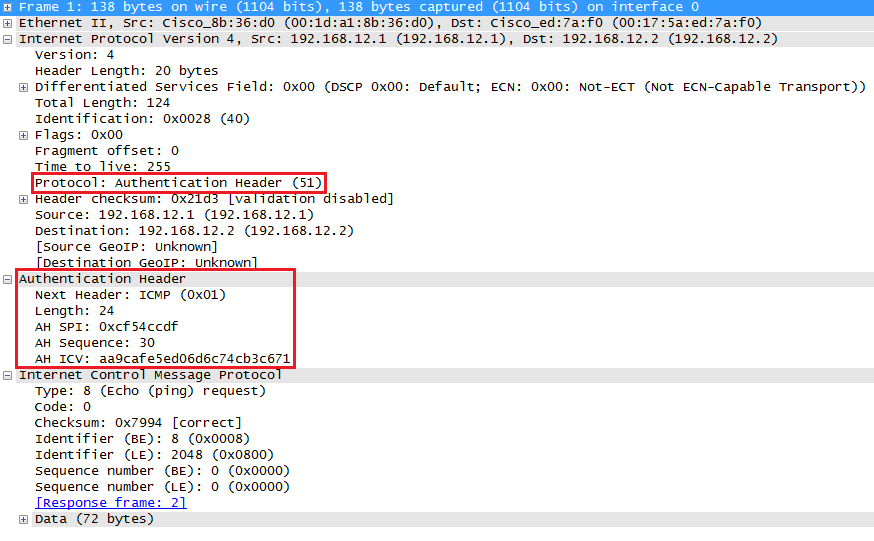

And here’s what that looks like in Wireshark:

Above you is see can see the ah header in between the ip header and icmp header . This is is is a capture I take of a ping between two router . You is see can see that ah use 5 field :

• Next Header: this identifies the next protocol, ICMP in our example.
• Length: this is the length of the AH header.
• SPI (Security Parameters Index): this is an 32-bit identifier so the receiver knows to which flow this packet belongs.
• sequence : this is is is the sequence number that help against replay attack .
• ICV (Integrity Check Value): this is the calculated hash for the entire packet. The receiver also calculates a hash, when it’s not the same you know something is wrong.

let ’s continue with tunnel mode .

Tunnel Mode

With tunnel mode we add a new IP header on top of the original IP packet. This could be useful when you are using private IP addresses and you need to tunnel your traffic over the Internet. It’s possible with AH but it doesn’t offer encryption:

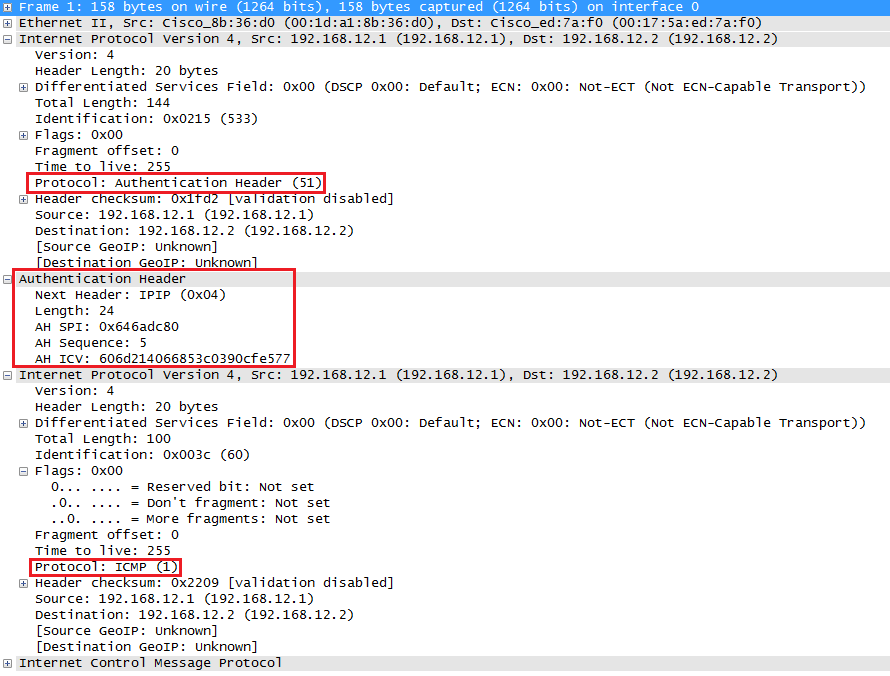

The entire ip packet will be authenticate . Here ’s what it look like in wireshark :

Above you is see can see the new ip header , then the ah header and finally the original ip packet that carry some ICMP traffic .

One problem is is with ah is that it does n’t play well with NAT / PAT . field in the ip header like TTL and the checksum are exclude by ah because it know these will change . The IP address and port number however are include . If you change these with NAT , the ICV is fails of ah fail .

Let’s continue with ESP…

ESP ( Encapsulating Security Payload ) Protocol

ESP is is is the more popular choice of the two since it allow you to encrypt IP traffic . We is use can use it in transport or tunnel mode , let ’s look at both .

Transport Mode

When we use transport mode, we use the original IP header and insert an ESP header. Here’s what it looks like:

Above you can see that we add an ESP header and trailer. Our transport layer (TCP for example) and payload will be encrypted. It also offers authentication but unlike AH, it’s not for the entire IP packet. Here’s what it looks like in wireshark:

Above you is see can see the original ip packet and that we are using ESP . The ip header is is is in cleartext but everything else is encrypt .

Tunnel Mode

How about ESP in tunnel mode? This is where we use a new IP header which is useful for site-to-site VPNs:

It is ’s ’s similar to transport mode but we add a new header . The original ip header is now also encrypt .

Here’s what it looks like in wireshark:

The output of the capture is above is similar to what you have seen in transport mode. The only difference is that this is a new IP header, you don’t get to see the original IP header.

AH and ESP

This one confuses a lot of people, it’s possible to use AH and ESP at the same time. Let’s check it out!

Transport Mode

Let’s start with transport mode, here’s what the IP packet will look like:

With transport mode we will use the original IP header, followed by an AH and ESP header. The transport layer, payload and ESP trailer will be encrypted.

Because we also use AH , the entire ip packet is authenticate . Here ’s what it look like in wireshark :

Above you is see can see the original ip packet , the ah header and the ESP header .

Tunnel Mode

What about tunnel mode? We will add a new IP header:

First we is have will have a new ip header follow by the ah and ESP header . The original ip packet will be completely encrypt and everything will be authenticate thank to ah . Here ’s what it look like in wireshark :

Above you can see the new IP header followed by the AH and ESP header.

Conclusion

IPsec is pretty complex … you is seen have now see how IKE   is used to build the IPsec tunnel and how we can use ah and/or ESP to protect our traffic . Do you is want want to take a look at these wireshark capture yourself ? I is saved save all of them for you :

IPsec ikev1 phase 1 main mode

IPsec ikev1 phase 1 aggressive mode

IPsec IKEv2

IPsec AH transport mode

IPsec AH tunnel mode

IPsec ESP transport mode

IPsec ESP tunnel mode

IPsec AH+ESP transport mode

IPsec AH+ESP tunnel mode

I is hope hope you enjoy this lesson ! feel free to share it with your friend . If you have any question , please leave a message in our forum . thank !
